Description
Overview

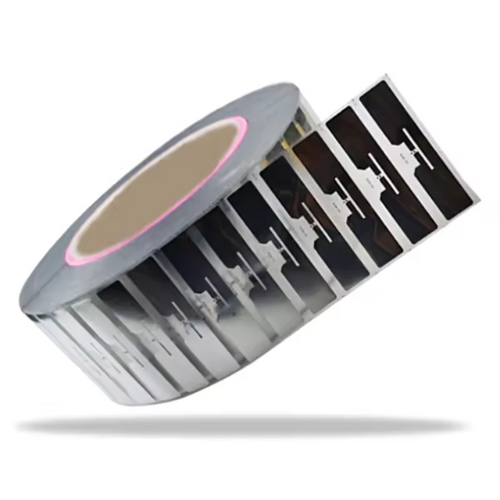

Amuse Tech Solutions Wet inlay Passive UHF RFID Tag vehicle Windshield can be divided into dry inlay and wet inlay. RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + PET + Glue + release paper.
Features
- Offers a more accurate and secure way
- Utilizes passive technology
- It has characteristics of long read distance
- Anti-counterfeiting
- Traceability
- Pallet Leasing
- Sharing Economy
- Provides important data support
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC global UHF Class1 Gen2 ISO18000-6C |
| Communication Interface | RFID, NFC |
| Special Features | Tamper Proof tag |
| Material | PET or Paper or Thermal paper |
| Memory | 96 or 512 or 1024 or 2048 or 2560 bits |
| Chip | H9 or U8 etc |
| Reading Distance | 3.2 ft to 16.4 ft (1 m to 5 m) depends on reader and environment |
| Printing | Silkscreen or CMYK Offset Printing |
| Applications | Clothing RFID tag, Car Parking, Parking Case, The tray labels, ISO card |
| Keyword | RFID Windshield label |
| EPC Memory Content | 100000 (times) |
| Max Read Distance | > (3 m) 10 ft |
| Application Surface Materials | Glass, Plastic, Wood, cardboard |
| Tag Materials | TT Printable White film |
| Tag Form Factor | Dry inlay or wet inlay or white wet inlay |
| Operating Or Storage Temp | – 40 °F to 158 °F (-40 ℃ to + 70 ℃) or 20 % RH to 90 % RH |
| Label Size | 3.2 in X 1 in (83 mm X 25.4 mm) |
| Antenna Size | 2.7 in X 0.6 in (70 mm X 17 mm) |
| Weight | 0.03 oz (< 1 g) |
