Description
Overview

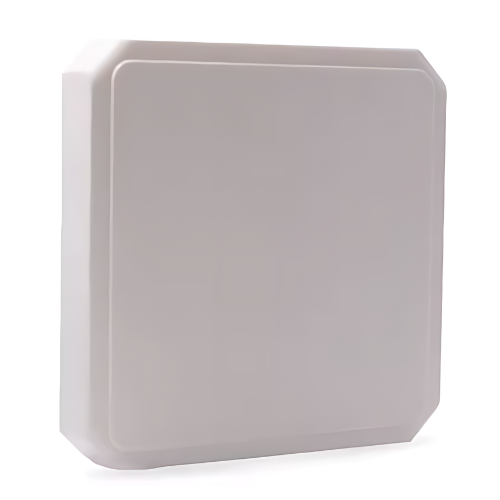

Amuse Tech Solutions Vehicle Tracking UHF RFID Integrated Reader is designed based on independent intellectual property rights and appearance patents. It features an integrated RF reader antenna, is small, light in weight, IP65, an industrial control joint, and is easy to deploy. Tag buffer size up to 800 pcs per 96 bits EPC. It performs excellent UHF R/W function and adapts to global working frequency. It is supplied with multi-language SDK (C#, C++, Delphi, VB, Java, Python), making it easy for secondary development integration. Support ARDUINO, ARM, Linux, Windows, Android, and Raspbian development platforms.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Radio Frequency | WAC independent R&D technology |
| Built-in Antenna | 9 dBi line polarization |

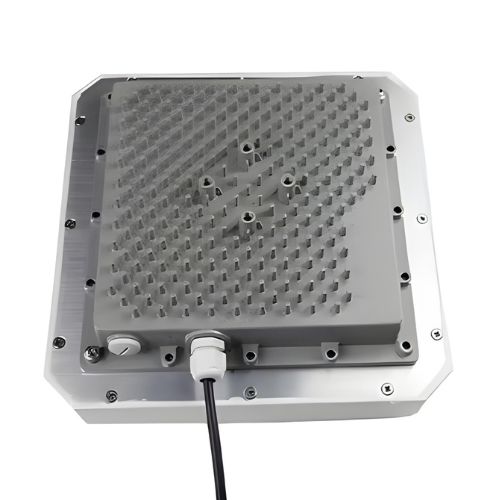

| Antenna Rear Housing | Die-casting aluminium alloy |
| Installation Method | Holding pole |
| Power | 30 dBm (adjustable by 1 dBm step with WAC demo software) |
| Group Read Rate | 1 pc to 10 pcs EPC Tag |
| Communication Interface | Standard: RS232, RJ45, Wiegand Optional: 4G or WIFI or USB |
| Serial Rate | 9600 bps to 115200 bps |
| RJ45 Rate | 10 M bps |
| GPIO (For Your Optional) | 1 relay output, 1 trigger input |
| Reading Indicator | Buzzer |
| Power Consumption | 1 W |
| Power Supply | 220 V AC input, +9 to 25 V per 2 A adaptor DC output |
| Application Software | API development kit and application routine based on Windows |
| SDK | C#, C++, Delphi, VB, Java, Python |
| Lighting Protection | DC ground |
| Protection Level | IEC IP65 |
| Shell Material | ABS + PC |
| Antenna Front Housing Color | Ceramic white |
| R/W Range | Read range 39.37 ft to 49.21 ft (12 m to 15 m), write range > 16.40 ft (> 5 m)(test tag: AZ9662Inlay) |
| Operating Temperature | -13 °F to 158 °F (-25 ℃ to +70 ℃) |
| Storage Temperature | -22 °F to 176 °F (-30 ℃ to +80 ℃) |
| Humidity | 5 % to 95 % RH, non-condensing |
| Dimension | 10.24 in x 10.24 in x 1.97 in (260 mm x 260 mm x 50 mm) (Exclude bracket and external wires) |
| Weight | 4.41 lb (2.0 kg) |
