Description
Overview

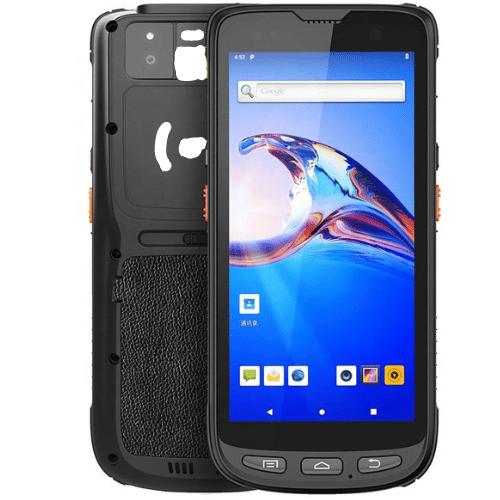

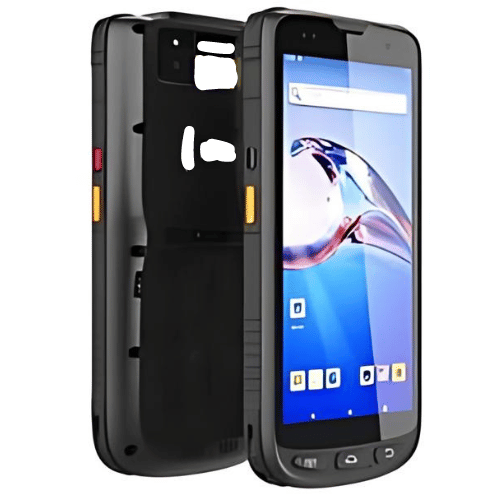

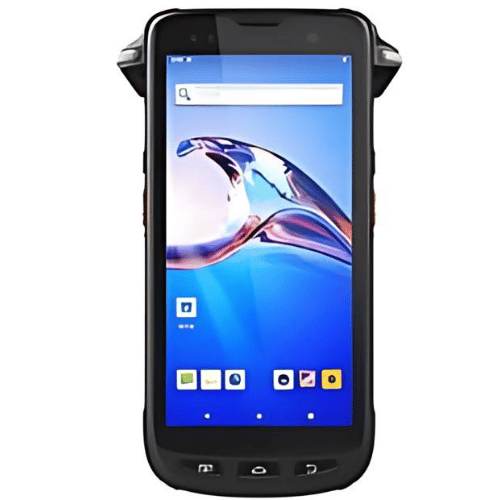

Amuse Tech Solutions UHF WIFI RFID rugged PDA Reader Handheld terminal with 4G high speed network communication. Inside the compact handheld device, sealing level of IP 65 water or dust proof, ergonomic design, over-molding structure, quick-charging technology, large built-in battery of 9000 mAh, and 5.5 inch (13.97 cm) capacitive touch screen. The device integrates 13.56 MHz NFC card reading function, supports ISO 14443 A or B, ISO15693, NFC-IP1, NFC – IP 2 and other protocol standards. The card reading position is appropriate and the operation is convenient.
Technical Specifications
| Frequency | 865 MHz To 868 MHz,920 MHz To 925 MHz |
| Protocol | EPC C1 GEN2 Or ISO 18000-6C |
| Antenna Gain | Circular Antenna (5 dBi) |
| R/W Range | Impinj R 2000 Module: 65.62 ft (20 m) (Tags And Environment Dependent) |
| Frequency | 13.56 MHz |
| Protocol | ISO 14443 A Or B & 15693, NFC-IP1, NFC-IP2 |
| R/W Range | 1.18 in To 1.97 in (30 mm To 50 mm) |
| CPU | MT 6771 Eight-core 64-bit Processor, TSMC 12 nm Process Technology Four A73 Cores + Four A 53 Small Cores, Clocked At 2.0 GHz + 2.0 GHz |
| Operating System | Android 10.0 |
| Storage | 2 GB RAM Or 16 GB ROM Or 4 GB RAM Or 64GB ROM, Micro SD (Max 256 GB Expansion) |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio Or Eclipse |
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA (850 MHz or 1900 MHz MHz or 2100 MHz); GSM or GPRS Or Edge (850 MHz Or 900 MHz Or 1800 MHz Or 1900 MHz) |
| WLAN | 2.4 GHz Or 5.0 GHz Dual Frequency, IEEE 802.11 a Or b Or g Or n Or ac |
| WPAN | BT Class v 2.1+ EDR, BT v 3.0 + HS, BT v 4.2 |
| GPS | GPS (Embedded A-GPS), BeiDou, GLONASS, Accuracy Of 6.40 ft (5 m) |
| Resolution | Rear 13 Megapixel, Front 5.0 Megapixel (Standard), Rear 21 Megapixel, Front 5.0 Megapixel (Optional) |
| Lens | Auto-focus With LED Flash |
| 2D CMOS Imager | SE 4710 Or ME 5600 Or Others |
| Symbologies | PDF 417, Micro PDF 417, Composite, RSS, TLC-39, Data Matrix, QR Code, Micro QR Code, Aztec, Maxi Code, Postal Codes, US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
| Expansions | 1 SIM, 1 TF; 1 PSAM (Optional) |
| Battery | Rechargeable li-ion Polymer, 3.7 V, 9000 mAh |
| Display | Gorilla Glass 3 9 H 5.5 in (13.97 cm) TFT-LCD (720×1440) Touch Screen With Backlight |
| Drop Specifications | 5 ft (1.5 m) Drop To Concrete Across The Operating Temperature Range |
| Sealing | IP 65, IEC Compliance |
| ESD | ± 15 kv Air Discharge, ± 8 kv Direct Discharge |
| Humidity | 5 % RH To 95 % RH (Non-condensing) |
| Backlight | LED Backlight |
| Operating Temp. | 14 °F To +122 °F (-10 ℃ To +50 ℃) |
| Storage Temp. | -4 °F To +158 °F (-20 ℃ To +70 ℃) |
| Dimension | 6.53 in x 3.11 in x 1.22 in (± 0.07 in) (166 mm x 79 mm x 31 mm) ± 2 mm |
| Weight | 22.9 oz (650 g) (Including Battery & Wrist Strap) |
