Description
Overview

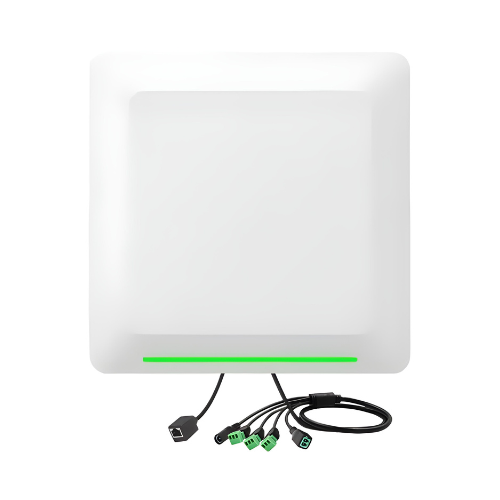

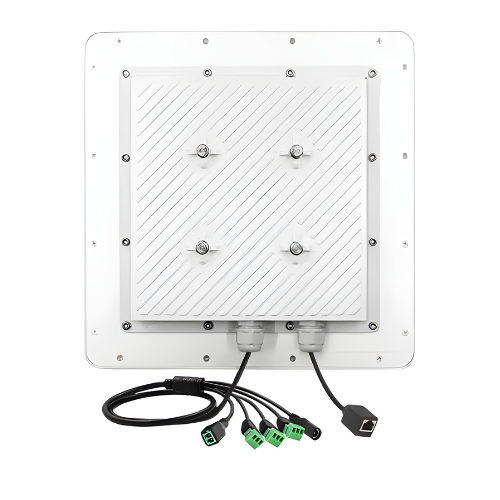

Amuse Tech Solutions RFID Standalone Reader system GPIO vehicle access control is UHF long distance reader which built-in controller with access control system, the reading can up to 0 ft to 49.2 ft (0 m to 15 m), it is widely used in parking IOT management, personnel management and access control management.
Technical Specifications
| Frequency | 865 MHz to 868 MHz (EU) or 902 MHz to 928 MHz (US) |
| Protocol | ISO18000-6C (EPC GEN2) |
| RF Power | 26 dbm (adjustable) |
| Interface | RS232or WG or GPIO or Relay or TCP or IP |
| Gain | 9 dBi |
| Equipment Material | ABS Shell, IP65 Protection grade |
| Read | 0 ft to 32.8 ft (0 m to 10 m) |
| Technical Support | Yes |
| Operating Voltage | 9 V to 24 V (with a 12 V 2 A adapter) |
| Color | Black |
| Communication Interface | Standard Interface: TCP or IP or WG or Relay or GPIO Optional Interface: POE or WIFI Customizable Interface: RS232 or USB or RS485 |
| Built-in Antenna | 9 dBi antenna |
| Frequency Hopping Mode | Active mode or trigger mode or answer mode |
| Card Reading Instruction | LED light bar (normal red light, card reading green light), buzzer; can be controlled by external wires |
| Whitelist Functions | 100000 Pcs at 96 bits |
| RF Power | Maximum 27 dB or 33 dB |
| Operating Temperature | 14 °F to 131°F (-10 °C to +55 °C) |
| Storage Temperature | – 4 °F to 167 °F (-20 °C to +75 °C) |
| Reader Size | 12.0 in X 12.0 in X 2.9 in (305 mm X 305 mm X 75 mm) |
