Description
Overview

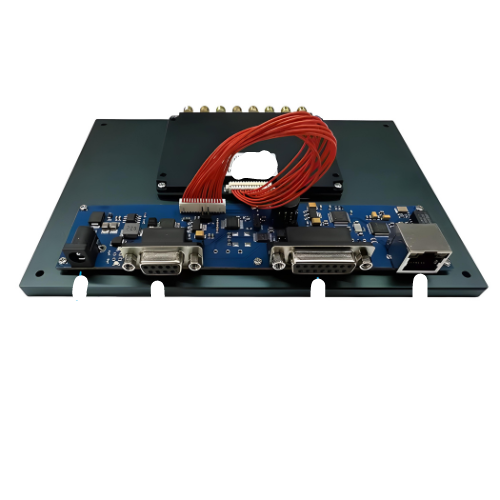

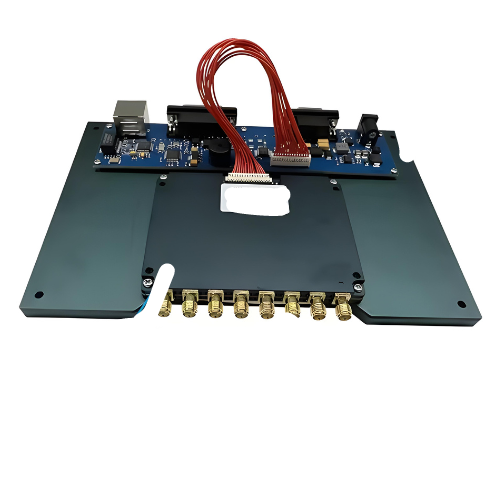

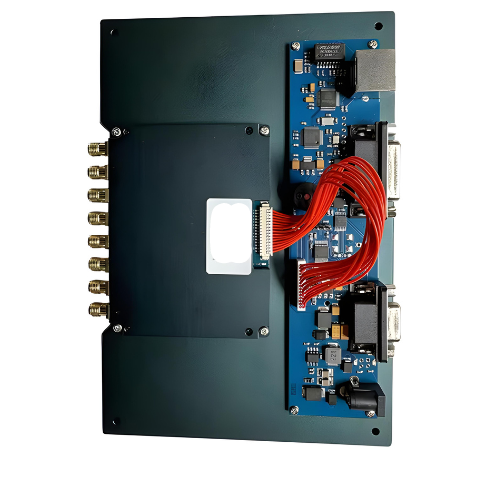

Amuse Tech Solutions RFID Module UHF Reader GPIO interface is a high-performance embedded UHF Reader RFID Module. It is fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read or write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
- Self-intellectual property
- High performance RF engine,
- Excellent multi-tag anti-collision operation
- FHSS or Fix Frequency transmission
- Reading range could be up to (10 m)
- RF output power is adjustable
- Support RSSI;
- Maximum inventory speed
- Support 8 SMA antenna port
- Low power dissipation
- 4 Port GPIO Interface
- Support RS232
- High stability with natural cooling
- Support firmware on-the-site upgrading
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO 18000-6C, ISO18000-6C (EPC GEN2) |
| Tag Buffer | 1000 pcs at 96 bits EPC |
| Power Supply | DC + 9 V (Power Adapter) |
| Working Mode | FHSS Or Fixed Frequency Transmission |
| Read Range | 0 ft to 49.2 ft (0 m to 15 m) (depends on reader, antenna and tag) |
| Antenna | 8 dBi, 9 dbi,12 dBi UHF antenna |
| Host Interface | Serial RS232 or RJ45 |
| Function | RFID Reader Component |
