Description
Overview

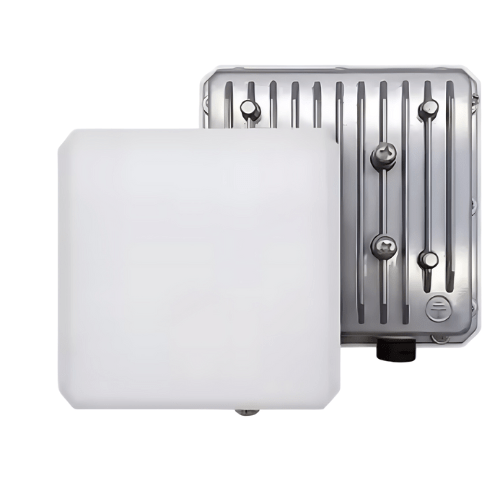

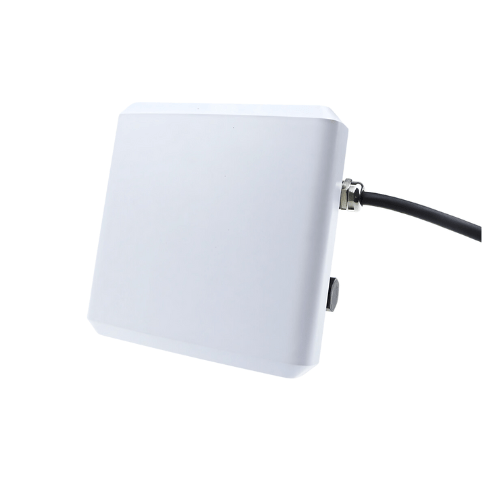

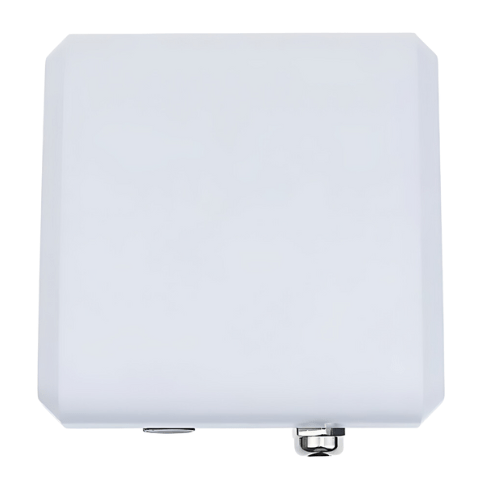

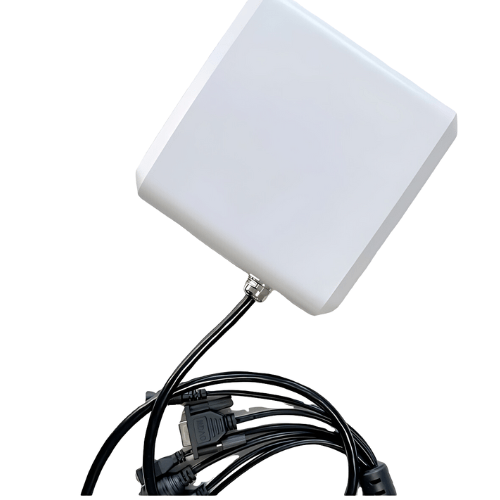

Amuse Tech Solutions Portable Mini Smart Writer UHF RFID is a high-performance UHF ultra-high frequency electronic label all-in-one machine, designed with completely independent intellectual property rights, combined with a proprietary high-efficiency signal processing algorithm, while maintaining a high algorithm, it realizes fast identification of electronic labels. Read and write processing can be widely used in various radio frequency identification (RFID) systems such as logistics, vehicle management, access control systems, anti-counterfeiting systems, and production process control.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO or IEC 18000-6B 6C |
| Frequency Hopping/Fixed Frequency | Support |
| RF Output Power | 33 dBm |
| Power Output Step | 1 dBm |
| RSSI Detection | Support |
| Continuous Reading Tag Distance | ≥ 65.62 ft (≥20 m) |
| Tag Recognition Speed | ≥ 500 pictures per second |
| Communication Interface | USB, RS232, RS485 per Weigand, RJ45 (TCP/IP, UDP) |
| Operating Voltage | DC 12.0 V (+9 V to 24 V) |
| Operating Temperature | -4°F to 131°F (-20 ℃ to 55 ℃) |
| Size | 5.24 in x 5.24 in x 2.04 in (133 mm x 133 mm x 51.8 mm) |
| Weight | 2.87 lb (1.3 kg) |
