Description
Overview

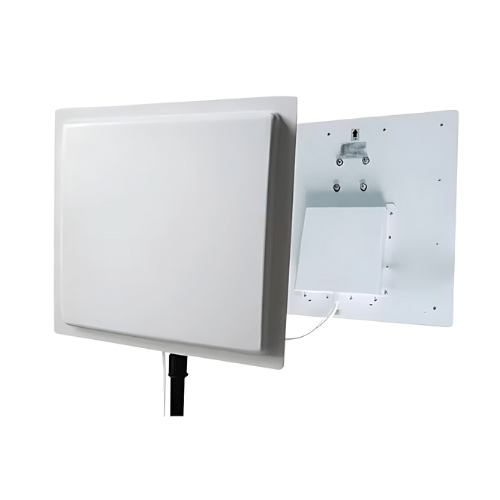

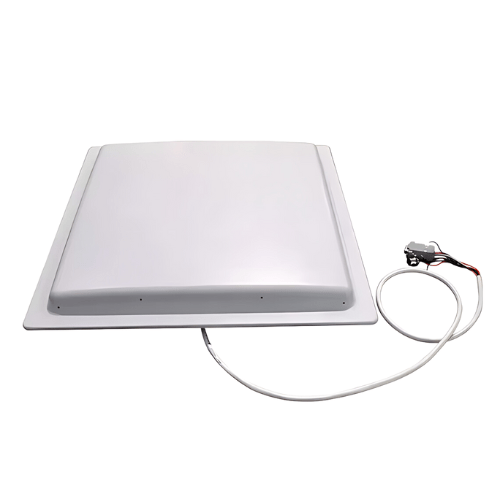

Amuse Tech Solutions Passive UHF RFID Integrated Reader belongs to ISO18000-6C & EPC Class 1 Gen2 protocol which can read and write all UHF RFID EPC tags in a long distance. With built-in RFID antenna and ABS material, it can be installed outdoors for car parking system.
Technical Specifications
| Frequency | Worldwide 840 MHz to 960 MHz, or US 902 MHz to 928 MHz or EU 865 MHz to 868 MHz |
| Protocol | ISO/IEC 18000-6C and 6B, EPC Class1 Gen2 |
| Type | Passive UHF RFID Reader |
| Antenna | Built-in 12 dbi linearized polarization RFID antenna |
| Transmit Power | 0 dBm to 30 dBm adjustable |
| Read Prompt | Buzzer |
| Anti-Collision | Support multiple tags reading |
| Read & Write Range | Read 3.2 ft to 49.2 ft (1m to 15 m) adjustable, tag and environment dependent |
| Reading Speed | Max. 100 tags per s |
| Software Kits | Provide free Demo for testing and SDK for development |
| Software Compatibility | Win XP, Win7, Win8 or Win10 |
| Material | ABS Waterproof |

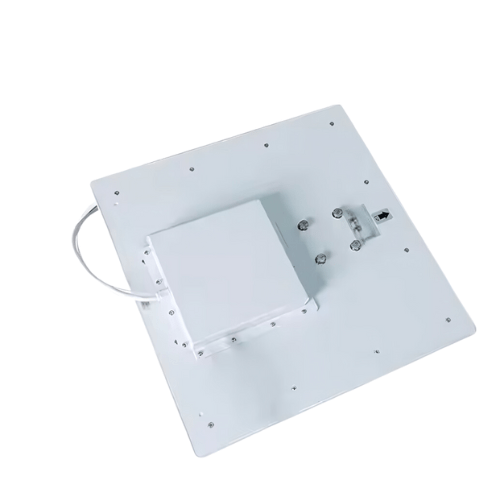

| Mounting | Bracket |
| Data Interface | RS232/UART, Wiegand26/34, RS485 |
| Power Supply | Single +9V to 12V DC |
| Accessories | 1 × Bracket, 1 × Power cable |
| Customized Service | Ethernet or WIFI port; Cable meters; Relay; External Antenna; Module; Led indicator; Circular Antenna; |
| Operating Humidity | 20 % to 90 % RH |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to +60 ℃) |
| Size | 17.52 in × 17.52 in × 2.17 in (445 mm x 445 mm x 55mm) |
