Description
Overview

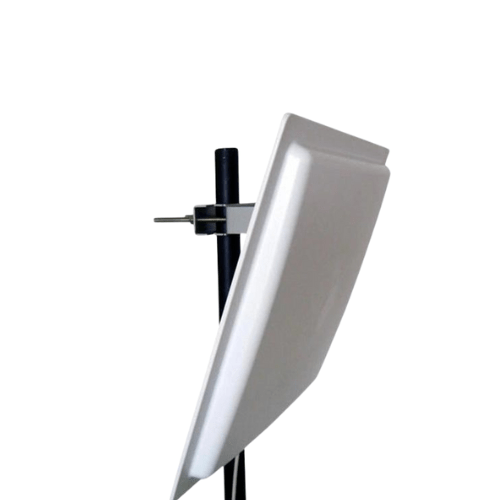

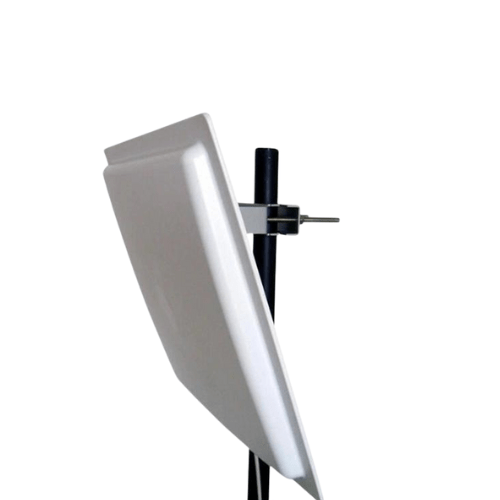

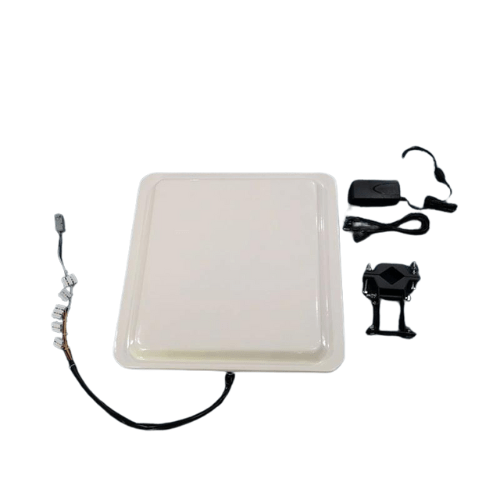

Amuse Tech Solutions Long Reading Range EPC Gen2 UHF RFID Reader with TCP/IP Interface is a High-Performance UHF integrated reader for long range operation. Compact Reader with integrated 12 dBi linear polarized UHF Far Field antenna. Based on proprietary efficient digital signal processing algorithm, the reader can read up to 49.2 ft (15 m) Read Range and 19.6 ft (6 m) Write Range. The reader operates in frequency range of 902 MHz to 928 MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag. The reader will not cause interference to WIFI network, making it the best choice for deployment in WIFI coverage zone and can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Operating Frequency | International (920 MHZ to 925 MHz) |
| USA (902 MHz to 928 MHz) | |
| Others (Customized Tag) | |
| Protocol | ISO18000‐6C(EPCGEN2) |
| ISO18000‐6B | |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Reading Range | Up to 49.2 ft (15 m) |
| Write Range | Up to 19.6 ft (6 m) |
| Antenna | 12 dBi linearly polarize antenna (Integrated) |
| Output Power | 0 dBm to 30 dBm (Adjustable) |
| Operating Mode | Master‐Slave Mode (Online Mode) |
| Time Scheduled Modes | |
| Trigger Mode | |
| Power | 12 V |
| Communication Port | RS‐232 |
| Wiegand Interface: Wiegand26&Wiegand34Supported | |
| RS‐485 | |
| 10 M or 100 M Ethernet, GPRS WIFI (for Customized Model only) | |
| Trigger | 1 x Trigger Level Input |
| General Purpose | 2 x GPIO |
| Operation | -4 °F to 140 °F (-20 °C to +60 °C) |
| Storage | -49 °F to 185 °F (-45 °C to +85 °C) |
| Dimension | 17.72 in × 17.72 in × 4.72 in (450 mm × 450 mm × 120 mm) |
| Weight | 11.02 lb (5 kg) |
