Description
Overview

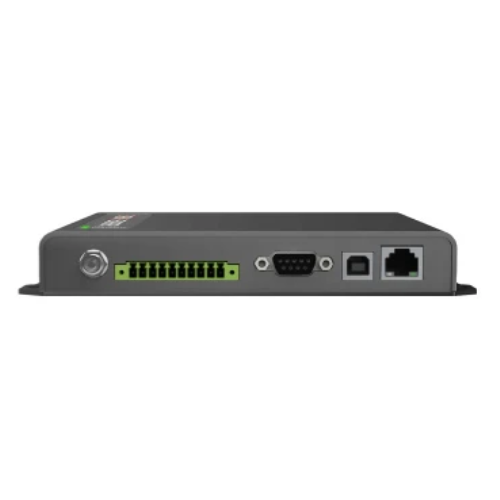

Amuse Tech Solutions Long Range UHF RFID Fixed Reader for Swimming Timing System is high performance UHF Long range RFID Reader integrated with Impinj E710 module with excellent reading performance. The reading distance up to 10 meters. It supports fast tag read or write with high identification rate. The reader is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Frequency | 902 MHz to 928 MHz (US) 865 MHz to 868 MHz (EU) |
| Protocol | ISO18000-6C (EPC GEN2) |
| Polling Inventory | Mufti-antenna port polling fast inventory |
| GPIO communication | Standard interface:USB,RS232,RS485,TCP or IP Optional interface: POE WIFI |
| Support Firmware Remote Online Upgrade | Special functional requirements can be completed through remote upgrades |
| RF Power | 33 dbm (adjustable) |
| Maximum Query Speed | 33 dbm (adjustable) |
| Reading Distance | 0 m to 25 m (0 to 984.25 inches) (Depends on external antenna and tag) |
| Data Cache Size | (0 m to 25 m) 0 ft to 82.0 ft (Depends on external antenna and tag)bits EPC |
| Mixed Query | Support simultaneous query of EPC + TID area data |
| Power Supply | DC 9 V to 24 V |
| Operating Mode | Answer mode Real-time query mode Trigger mode (optional) |
| Judgment Distance | Answer mode real-time query mode trigger mode (optional) |
| Voltage | 12V 2A |
| Current Consumption | 0.5 A to 1.2 A |
| Communication Interface | standard interface:USB, RS232, RS485, TCP or IP Optional interface: POE, WIFI |
| GPIO Interface | Standard interface: USB, RS232, RS485, TCP or IP Optional interface: POE, WIFI |

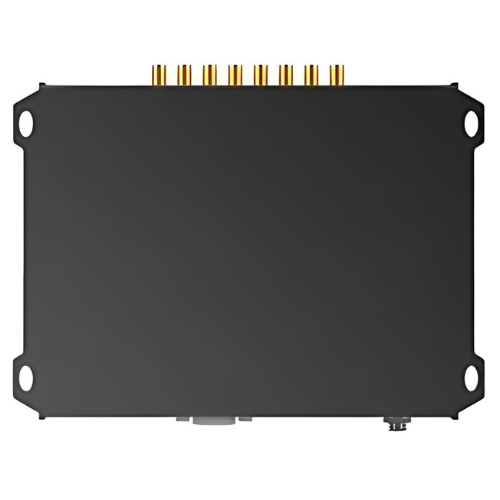

| Antenna Port | 8 SMA female ports |
| Operating Temperature | 14 ºF to 140 ºF (-10 ºC to +60ºC) |
| Storage Temperature | 14 ºF to 140 ºF (-10 ºC to +60ºC) |
| Equipment Size | 7.2 in X 5.7 in X 1.0 in (184 mm x 145 mm x 26 mm) |
| Equipment Weight | 21.1 oz (600 g) (0.6 kg) |
