Description
Overview

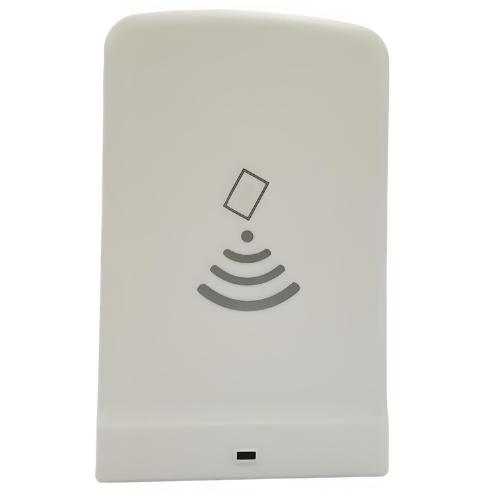

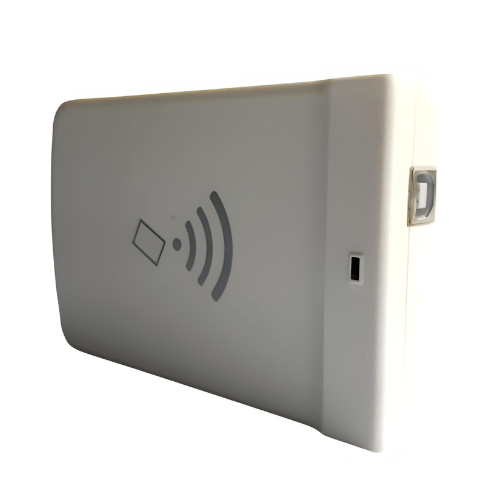

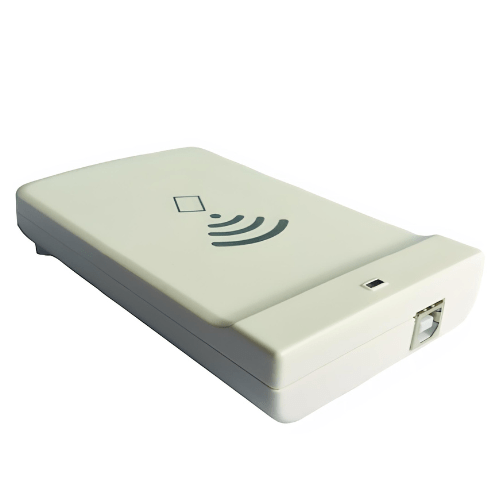

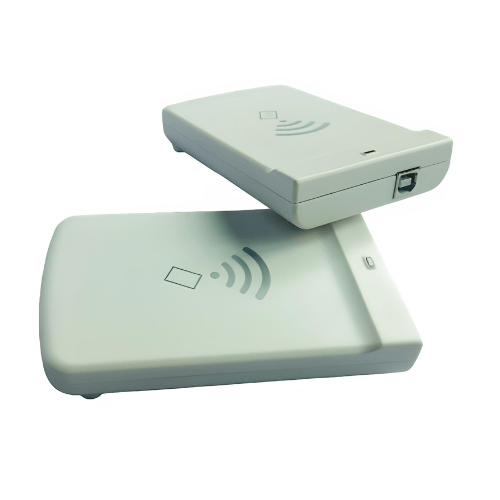

Amuse Tech Solutions Long Range Encoder Duplicator Card Desktop UHF Writer RFID Reader delivers the performance, quality, and reliability necessary for maximum visibility of tagged inventory and assets. Able to maintain high read rates regardless of RF noise or interference as the readers adapt automatically for optimal functionality, this is a powerful piece of item visibility platform solutions.
Features
- UHF RFID desktop reader with Impinj INDY chip
- Adjustable power up to 25 dBm, recommended 15 dBm
- USB interface for power and communication
- Internal 3dBi circular polarization antenna
- Adjustable tag reading distance up to 3.2 ft (1 m)
- High read rate of 200 tags per s
- Two GPIO for LED light and buzzer control
- Ideal for high-performance industrial applications
Technical Specifications
| Frequency Range | 840 MHz to 960 MHz Standard: 902 MHz to 928 MHz Customized optional |
| Label Protocol | EPC C1G2/ISO18000-6C |
| Fixed Current | 380 mas USB Power supply at 15 dBm |
| Standby Current | ≤ 100 mas |
| Channel Bandwidth | 250 khz |
| Frequency Hopping Speed | ≤ 2 S |
| Fixed Power | 15 dBm |
| Step Interval | 0.5 dBm 5 dBm to 25 dBm adjustable by software |
| Radio-Frequency Power Rising Time | ≤ 500 μs |
| Radio-Frequency Power Dropping Time | ≤ 500 μs |
| Adjacent Channel Power Leaking Ratio | ≤ -40 db (± 1 CH) ≤ -60 db (± 2 CH) |
| Frequency Stabilizing Ratio | ± 10 ppm ± 20 ppm |
| Maximum Reading Range | 3.2 ft (1 m) Internal 0 dBi antenna |
| Multi-Label | >200 per s |
