Amuse Tech Solutions Long Range 4 Port Access Control RFID Reader – Voltage 12 V 2 A

Description

Frequency Standard	902 MHz to 928 MHz (US) 865 MHz to 868 MHz (EU)
Protocol Standard	ISO18000-6C (EPC GEN2)
RF Power	33 dbm (adjustable)
Maximum Query Speed	800 tags per s
Reading Distance	0 ft to 82.02 ft (0 m to 25 m) (Depends on external antenna and tag)
Data Cache Size	600 pcs at max 128 bits EPC or 180 pcs at max 496 bits EPC
Mixed Query	Support simultaneous query of EPC+TID area data
Operating Mode	Answer mode Real-time query mode Trigger mode (optional)
Judgment Distance	Support output RSSI value
Voltage	12 V 2 A
Current Consumption	0.5 A to 1.2A
Communication Interface	Standard Interface: USB, RS232, RS485, TCP/IP & Optional Interface: POE, WIFI
GPIO Interface	2 sets of trigger signal input 2 sets of relay signal output

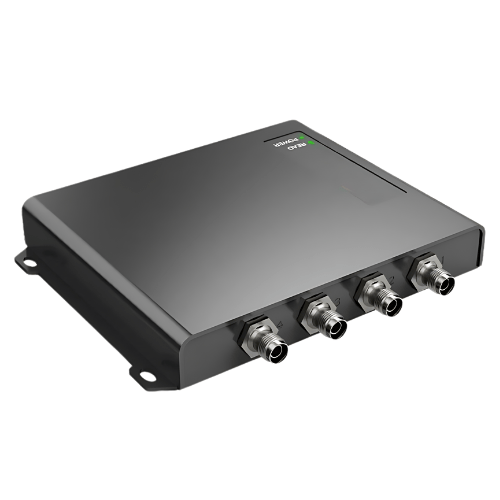

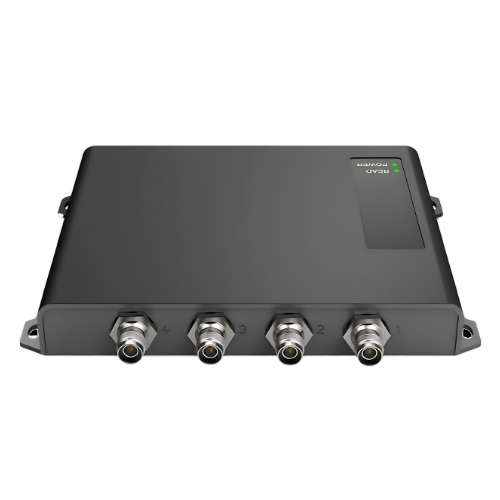

Antenna Port	4 RP TNC female connectors (TNC reverse female connectors)
Operating Temperature	14 ºF to 140 ºF (-10 ºC to +60 ºC)
Storage Temperature	-4 ºF to 167 ºF (-20 ºC to +75 ºC)
Equipment Size	6.69 in x 4.41 in x 0.94 in (170 mm x 112 mm x 24 mm)
Equipment Weight	1.32 lb (0.6 kg)
