Description
Overview

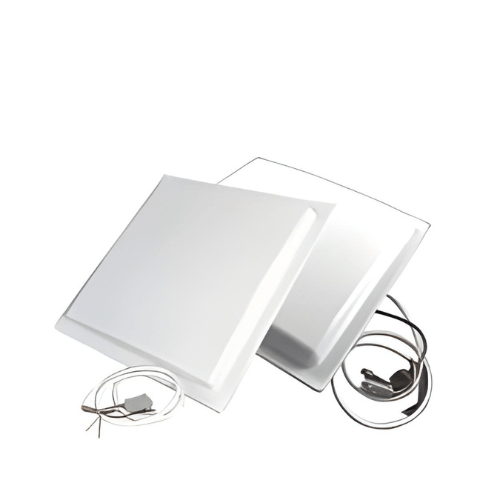

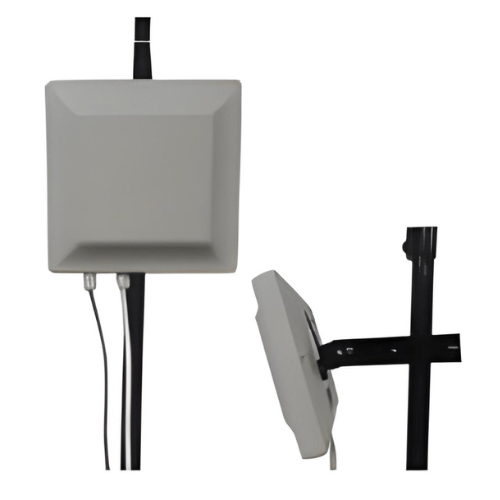

Explore our ISO 18000-6C RFID Reader: wide frequency range, extended reader distance, and versatile interface options.
Technical Specifications
| Protocol | ISO 18000-6C |
| Frequency | 860 MHz to 928 MHz |
| Reader Distance | 32.8 ft to 39.3 ft (10 m to 12 m) |
| Interface | Standard: Viegand 26, Viegand 34, RS485, RS232, set by software Optional: WiFi, RJ4530 |
| Data Input Interface | One group Trigger Input |
| Indicator | Buzzer |
| Power Supply | DC 9 V (equipped with power adaptor) |
| Operating Temperature | 10 °F to 140 °F (-10 °C to 60 ℃) |
| Storage Temperature | -13 °F to 176 °F (-25 °C to 80 ℃) |
| Size | 17.32 in x 17.32 in x 1.96 in (440 mm X 440 mm X 50 mm) |
| Weight | 6.6 lb (2 kg) |
