Description
Features
- Mature Technology
- Stable Performance
- Long Distance Reading from 0 ft to 98.43 ft (0 m to 30 m)
- Hot selling with safe stock always
- Support POE and IP 54 Industrial Protection
- TCP/IP and RS232 communication
Technical Specifications
| Frequency Supported | |
| SSRRC China | 840 MHz to 845 Mhz,920 MHz to 925 MHz |
| FCC North America | 902 MHz to 928 MHz |
| ETSI Europe | ETSI Europe |
| Communication Interface & Network Protocol | |
| Interface | RS232,10 M or 100 M Ethernet |

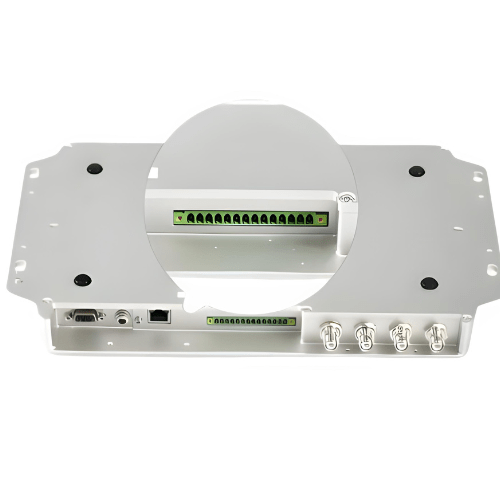

| GPIO Interface | 4 channels of opto-isolated input (5 V, <20 MA) 4-way relay control output (30 V, <1000 MA) |
| Network Protocol | TCP/IP, DHCP, SSH, FTP, TELNET, UDP |
| Case Material | Aluminium Alloy |

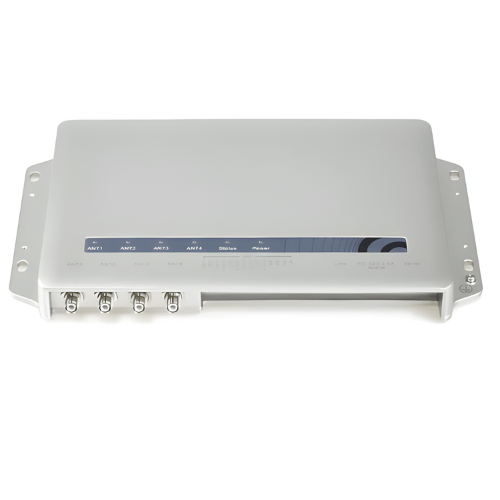

| Antenna Interface | 4 TNC External Antenna Interface |
| Power Source | |
| Adapter (Not Included) | AC Input 100 V to 240 V, 50 Hz to 60 Hz DC Output 24 V ± 5 % per 2.5 A |
| DC Power Supply | 24 V to 30 V (24 V per 2.5 A recommended) |
| POE supply (Option) | Support IEEE802.3AF & IEEE802.3AT protocol |
| Power Consumption | 5 W to 24 W |
| Performance Parameter | |
| Distance Reading | 0 to 98.43 ft (30 m) |
| GPIO | 4 Photoelectric Isolation Input (5 V, <20 mA); 4 Relay Control |
| Tag Data Rate | (Relevant to Configurations) |
| RF Output Power | 40 kbps to 400 kbps 11 dBm to 33 dBm (step of 1 dBm) |
| Product Certification | |
| CMIIT ID | 2012DP2304 |
| FCCID | TQ4XC-RF807 |
| CE ID | ES120229146E |
| Working Environment | |
| Operating Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Storage Temperature | -30 °C to +75 °C (32 °F to 104 °F) |
| Humidity Range | |
| Dimensions | 360 mm x 220 mm x 39 mm (14.17 in x 8.66 in x 1.54 in) |
| Weight | 2.5 kg (5.5 lb) |
